ACCUON A7 Auto Ref-Keratometer
-25. to +25. D Cyl 10D +or - Min Pupil 2.0mm VD 0.0,12.,13.5, 15 mm
Keratometry Radius of Curvature 5.0-0.2 mm Power 33.00-67.50D, Corneal Astigmatism 0.00/-15.00D
Interface HDMI, USB, USB-C Micro SD, RS232C, WIFI, and, Bluetooth.
260x 525x 445 Table top space
Specifications
|

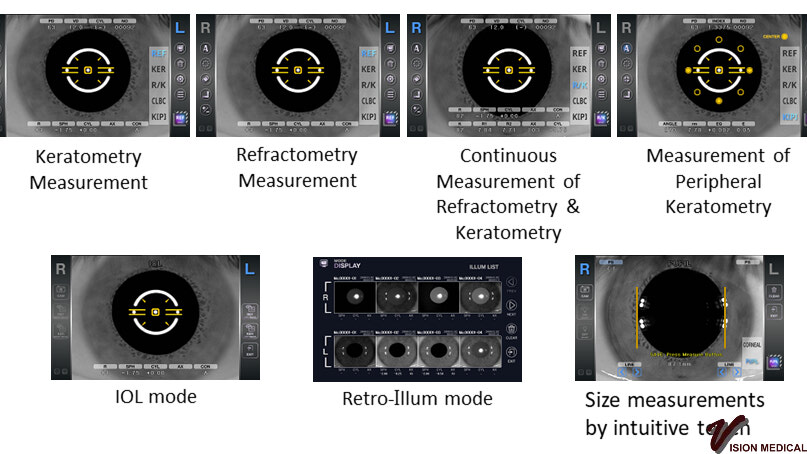

Measurements mode : R/K, REF, KER, CLBC, K/P |
|
|
Refractometry |
|
|
Vertex Distance(VD) |
0.0, 12.0, 13.5, 15.0 mm |
|
Sphere Power(SPH) |
-25.00 ~ +25.00 D (at the vertex distance of 12 mm) (Increments selectable between 0.12 and 0.25 D) |
|
Cylinder Power(CYL) |
0.00 ~ ±10.00 D (Increments selectable between 0.12 and 0.25 D) |
|
Axis(AX) |
1˚ ~ 180˚ (Increments : 1˚ ) |
|
Cylinder Form |
-, +, MIX |
|
Pupil Distance(PD) |
10 ~ 88 mm |
|
Minimum Pupil Diameter |
Ø 2.0 mm |
|
Keratometry |
|
|
Radius of Curvature |
5.0 ~ 10.2 mm (Increments selectable from 0.01mm ) |
|
Corneal Power |
33.00 ~ 67.50 D (when cornea equivalent refractive index is 1.3375) (Increments selectable from 0.05 / 0.12 / 0.25D ) |
|
Corneal astigmatism |
0.00 ~ -15.00 D (Increments selectable form 0.05 / 0.12 / 0.25D ) |
|
Axis |
1˚ ~ 180˚ (Increments: 1˚) |
|
Corneal Diameter |
2.0 ~ 14.0 mm (Increments: 01mm ) |
|
Environments |
|
|
Operation |
Temperature : +10℃ ~ +40℃ Humidity : 30% ~ 85% RH Atmospheric pressure : 70 ~ 106 kPa |
|
Storage and Transportation |
Temperature : -10℃ ~ +55℃ Humidity : 10% ~ 95% RH Atmospheric pressure : 70 ~ 106 kPa |
|
Others |
|
|
Memory of Data |
10 measured value for each right and left eye |
|
Internal Printer |
Thermal line printer with Auto-Cutter function |
|
Monitor |

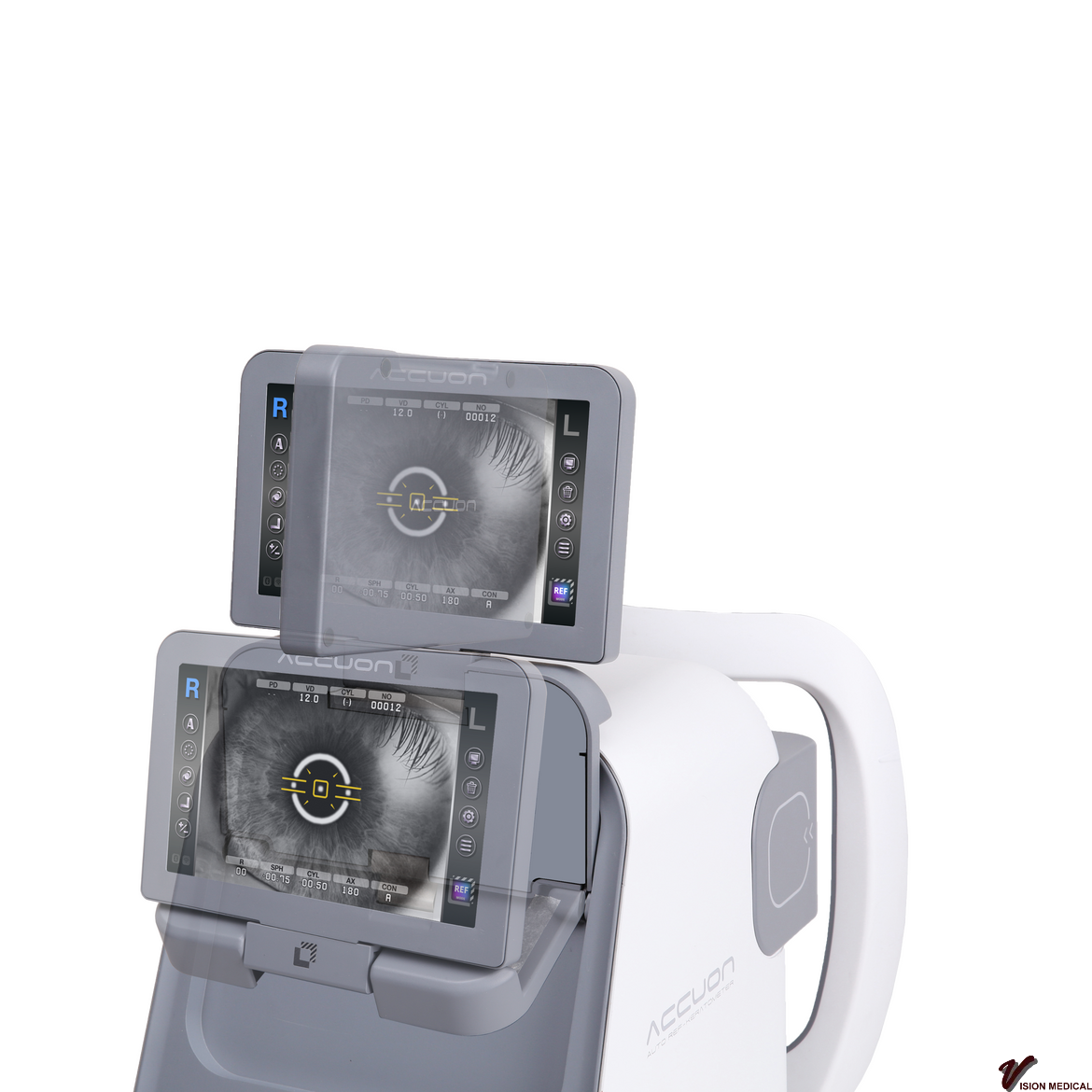

Color 7” TFT-LCD |
|
Power supply |
AC100-240V, 50/60Hz |
|
Power consumption |
50-75 VA |
|
Size |
Approximately 260(W) ´ 525(D) ´ 445(H) mm |
|
Weight |
Approximately 19kg |
